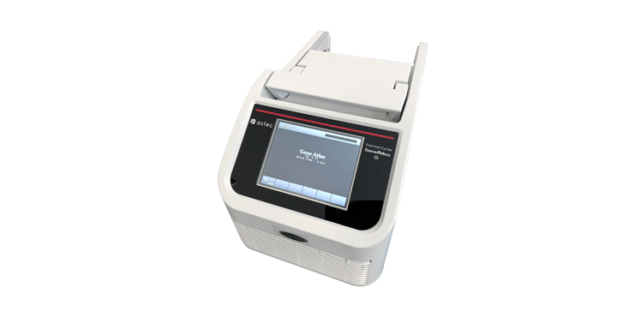

Thermal Cyclers Gene Atlas
Renovated and optimized to meet your versatile PCR applications. Compact-sized GeneAtlas Thermal Cyclers are equipped with a large, easy-to-view 5.7-inch TFT LCD touch screen with prominently improved.
The lid is designed to slide over onto the sample holder by moving the handle to the front and to the back, making sure to apply the same amount of pressure on the sample tubes in the holder.
Specification
Gradient G02
Block Format | 0.2 ml X 96 |
Sample Holder Interchangeable | Yes* (0.2 ml x 96 wells, 0.5 ml x 54 wells, For slide glass, for 384-well plate) |
Temperature Control | PID Control by microprocessors |
Heating / Cooling Method | Block : solid state modules / Cover: ceramic heater |
Temperature Control Range | 4.0°C - 99.9°C |
Temperature Control Accuracy | ±0.1°C |
Well-to-Well Temperature Distribution | ±0.5°C or less |
Gradient Temperature Setting | Max 30°C |
Maximum Heating Rate | 3.5°C/sec. |
Maximum Cooling Rate | 3.0°C/sec. |
Heating/Cooling Time Setting Range | 1 sec. - 9 hrs. 59 min. 59 sec. |
Temperature Ramping | 0.1°C - 30.0 °C/cycle |
Reaction Time Setting Range | 1 sec. - 59 min. 59 sec. / HOLD / Continuous |
Maximum Number of cycles | 99 cycles / segment |
Number of Reaction Temperature Steps | Max. 25 steps (5 steps/cycle x 5 segments) |
Number of Program Files | Max. 240 files (20 files x 12 boxes) |
Cover Heat Control | Block interlock / constant temperature / OFF |
Display | 5.7 - inch TFT color LCD touch screen, 640 x 480 pixels, 262,000 colors |
Interface | Memory card slot |
Self-Diagnostic Function | Yes |
Finish Time Display | Yes |
Sample Amount Setting | Yes |
External Dimensions | W220 X D450 X H 250 mm |
Weight | 11Kg |
Rated Power Supply | AC 200V - AC 240V, 2.5A, 50/60 Hz AC 100V - AC 120V, 5.0A, 50/60 Hz |
Gradient G05
Block Format | 0.5 ml X 54 |
Sample Holder Interchangeable | Yes* (0.2 ml x 96 wells, 0.5 ml x 54 wells, For slide glass, for 384-well plate) |
Temperature Control | PID Control by microprocessors |
Heating / Cooling Method | Block : solid state modules / Cover: ceramic heater |
Temperature Control Range | 4.0°C - 99.9°C |
Temperature Control Accuracy | ±0.1°C |
Well-to-Well Temperature Distribution | ±0.5°C or less |
Gradient Temperature Setting | Max 30°C |
Maximum Heating Rate | 3.0°C/sec. |
Maximum Cooling Rate | 2.5°C/sec. |
Heating/Cooling Time Setting Range | 1 sec. - 9 hrs. 59 min. 59 sec. |
Temperature Ramping | 0.1°C - 30.0 °C/cycle |
Reaction Time Setting Range | 1 sec. - 59 min. 59 sec. / HOLD / Continuous |
Maximum Number of cycles | 99 cycles / segment |
Number of Reaction Temperature Steps | Max. 25 steps (5 steps/cycle x 5 segments) |
Number of Program Files | Max. 240 files (20 files x 12 boxes) |
Cover Heat Control | Block interlock / constant temperature / OFF |
Display | 5.7 - inch TFT color LCD touch screen, 640 x 480 pixels, 262,000 colors |
Interface | Memory card slot |
Self-Diagnostic Function | Yes |
Finish Time Display | Yes |
Sample Amount Setting | Yes |
External Dimensions | W220 X D450 X H 250 mm |
Weight | 11Kg |
Rated Power Supply | AC 200V - AC 240V, 2.5A, 50/60 Hz AC 100V - AC 120V, 5.0A, 50/60 Hz |
Standard S02
Block Format | 0.2 ml X 96 |
Sample Holder Interchangeable | Yes* (0.2 ml x 96 wells, 0.5 ml x 54 wells, For slide glass, for 384-well plate) |
Temperature Control | PID Control by microprocessors |
Heating / Cooling Method | Block : solid state modules / Cover: ceramic heater |
Temperature Control Range | 4.0°C - 99.9°C |
Temperature Control Accuracy | ±0.1°C |
Well-to-Well Temperature Distribution | ±0.5°C or less |
Gradient Temperature Setting | N/A |
Maximum Heating Rate | 3.5°C/sec. |
Maximum Cooling Rate | 3.0°C/sec. |
Heating/Cooling Time Setting Range | 1 sec. - 9 hrs. 59 min. 59 sec. |
Temperature Ramping | 0.1°C - 30.0 °C/cycle |
Reaction Time Setting Range | 1 sec. - 59 min. 59 sec. / HOLD / Continuous |
Maximum Number of cycles | 99 cycles / segment |
Number of Reaction Temperature Steps | Max. 25 steps (5 steps/cycle x 5 segments) |
Number of Program Files | Max. 240 files (20 files x 12 boxes) |
Cover Heat Control | Block interlock / constant temperature / OFF |
Display | 5.7 - inch TFT color LCD touch screen, 640 x 480 pixels, 262,000 colors |
Interface | Memory card slot |
Self-Diagnostic Function | Yes |
Finish Time Display | Yes |
Sample Amount Setting | Yes |
External Dimensions | W220 X D450 X H 250 mm |
Weight | 11Kg |
Rated Power Supply | AC 200V - AC 240V, 2.5A, 50/60 Hz AC 100V - AC 120V, 5.0A, 50/60 Hz |
Standard S05
Block Format | 0.5 ml X 54 |
Sample Holder Interchangeable | Yes* (0.2 ml x 96 wells, 0.5 ml x 54 wells, For slide glass, for 384-well plate) |
Temperature Control | PID Control by microprocessors |
Heating / Cooling Method | Block : solid state modules / Cover: ceramic heater |
Temperature Control Range | 4.0°C - 99.9°C |
Temperature Control Accuracy | ±0.1°C |
Well-to-Well Temperature Distribution | ±0.5°C or less |
Gradient Temperature Setting | N/A |
Maximum Heating Rate | 3.0°C/sec. |
Maximum Cooling Rate | 2.5°C/sec. |
Heating/Cooling Time Setting Range | 1 sec. - 9 hrs. 59 min. 59 sec. |
Temperature Ramping | 0.1°C - 30.0 °C/cycle |
Reaction Time Setting Range | 1 sec. - 59 min. 59 sec. / HOLD / Continuous |
Maximum Number of cycles | 99 cycles / segment |
Number of Reaction Temperature Steps | Max. 25 steps (5 steps/cycle x 5 segments) |
Number of Program Files | Max. 240 files (20 files x 12 boxes) |
Cover Heat Control | Block interlock / constant temperature / OFF |
Display | 5.7 - inch TFT color LCD touch screen, 640 x 480 pixels, 262,000 colors |
Interface | Memory card slot |
Self-Diagnostic Function | Yes |
Finish Time Display | Yes |
Sample Amount Setting | Yes |
External Dimensions | W220 X D450 X H 250 mm |
Weight | 11Kg |
Rated Power Supply | AC 200V - AC 240V, 2.5A, 50/60 Hz AC 100V - AC 120V, 5.0A, 50/60 Hz |
